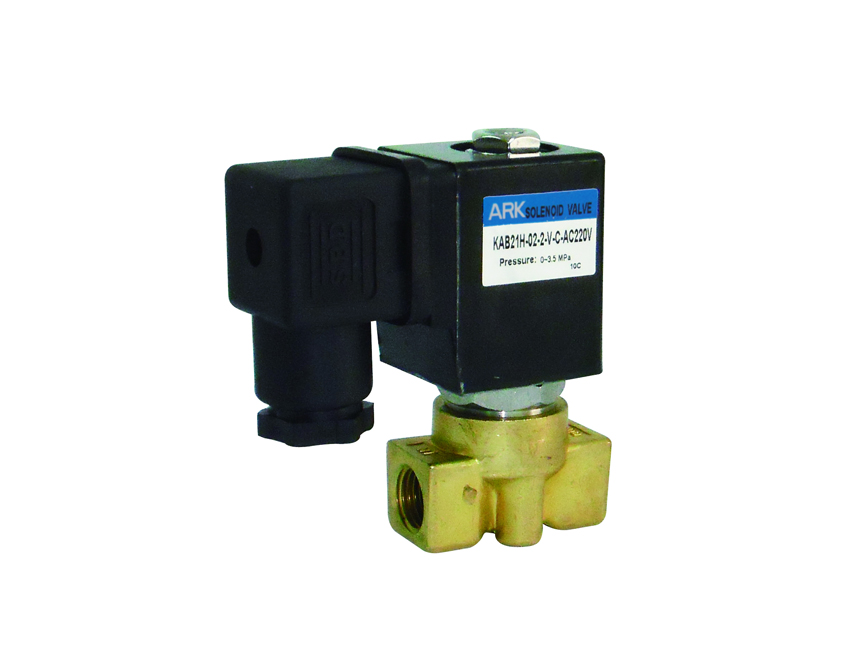

高压2通电磁阀 KAB21H
发布时间: 2015-08-10 10:44
| 型号 Model | 接管口径 Port size | 通径Orifice (mm) | 最低压差 Min. differential pressure （MPa) | 最高压差 Max. differential pressure (Mpa) | 切换方式 Actuation | |
| AC | DC | |||||
| KAB21H-01-01- | G1/8" | 1 | 0 | 10 | 7.5 | 直动式常闭型 Direct operated, N.C. |
| KAB21H-01-C1- | G1/8" | 1.2 | 0 | 9 | 7 | |
| KAB21H-01-C2- | G1/8" | 1.5 | 0 | 7.5 | 5 | |
| KAB21H-01-02- | G1/8" | 2 | 0 | 3.5 | 3 | |
| KAB21H-01-C3- | G1/8" | 2.5 | 0 | 2 | 1.5 | |
| KAB21H-02-01- | G1/4" | 1 | 0 | 10 | 7.5 | |
| KAB21H-02-C1- | G1/4" | 1.2 | 0 | 9 | 7 | |
| KAB21H-02-C2- | G1/4" | 1.5 | 0 | 7.5 | 5 | |
| KAB21H-02-02- | G1/4" | 2 | 0 | 3.5 | 3 | |
| KAB21H-02-C3- | G1/4" | 2.5 | 0 | 2 | 1.5 | |
| KAB21H-02-08- | G1/4" | 8 | 0.5 | 9 | 7 | |
| KAB21H-03-08- | G3/8" | 8 | 0.5 | 9 | 7 | |
| KAB21H-03-15- | G3/8" | 15 | 1 | 7.5 | 5.5 | |
| KAB21H-04-08- | G1/2" | 8 | 0.5 | 9 | 7 | |
| KAB21H-04-15- | G1/2" | 15 | 1 | 7.5 | 5.5 | |
| KAB21H-06-20- | G3/4" | 20 | 1 | 6.5 | 5 | |
| KAB21H-08-25- | G1" | 25 | 1 | 5.5 | 4.5 | |
阀体材质：锻铜、不锈钢SS304
密封材质：NBR, VITON
使用流体：空气，水，瓦斯，轻油等
